JCQ526A4 L · 305 / 400 mm

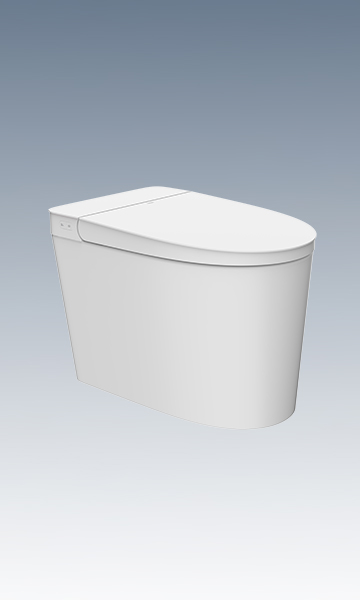

JCQ526A Compact Light Smart Integrated Toilet
Compact size, big comfort upgrade.
Type
Light smart integrated toilet (compact)
Dimensions
608 × 406 × 447 mm
Water Pressure
0.1 MPa (dynamic) – 0.6 MPa (static)
Flush Volume
4 L
Rough-in
305 / 400 mm
Drainage
Floor drain (S-trap)
Seat
PP flame-retardant slow-close seat
Full Specifications
Overview
Model
JCQ526A
Type
Light smart integrated toilet (compact)
Intended Use
Hotels, resorts, homes, offices, hospitals and commercial restrooms
Key Performance
Flush System
Super-conductive flush system with built-in pressure-reducing valve and anti-splash design
Flush Volume
4 L
Water Pressure
0.1 MPa (dynamic) – 0.6 MPa (static)
Water Efficiency
National Grade-1 water efficiency
Hardware
Dimensions (L×W×H)
608 × 406 × 447 mm
Rough-in
305 / 400 mm
Drainage
Floor drain (S-trap)
Seat Material
PP flame-retardant slow-close seat
Heating Mode
—
Comfort & Features
Feature 1
Compact 608 mm body saves space in small bathrooms — full features, smaller footprint
Feature 2
Wider U-shaped seat (up to 9 cm) reduces leg numbness during long sits
Feature 3
Silver-ion antibacterial seat: SIAA-certified, up to 99.9% antibacterial rate
Feature 4
Heated seat with even, constant warmth for every season
Feature 5
Pre-misting wets the ceramic wall before use to prevent sticking
Feature 6
Auto-flush when you stand up — hands-free and worry-free
Feature 7
Battery-backup flush works during power outages
Packaging
Item 1
Ceramic toilet bowl × 1 set
Item 2
Seat assembly × 1 set
Item 3
Waterway fittings (angle valve, filter screen, hoses) × 1 set
Item 4
Floor-drain installation
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
