HQ670X4 L · 305 / 400 mm

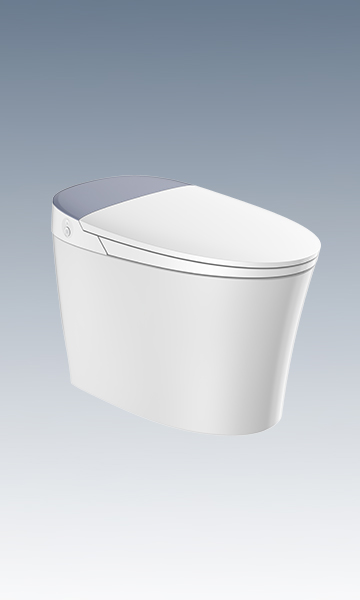

HQ670X Light Smart Integrated Toilet
Vortex quiet flush — exceptional cleanliness.
Type
Light smart integrated toilet
Dimensions
693 × 415 × 491 mm
Water Pressure
0.1 MPa (dynamic) – 0.6 MPa (static)
Flush Volume
4 L
Rough-in
305 / 400 mm
Drainage
Floor drain (S-trap)
Seat
PP flame-retardant slow-close seat
Full Specifications
Overview
Model
HQ670X
Type
Light smart integrated toilet
Intended Use
Hotels, resorts, homes, offices, hospitals and commercial restrooms
Key Performance
Flush System
0-pressure quiet vortex flush: low-decibel, noise-reduced, with no water-pressure limit
Flush Volume
4 L
Water Pressure
0.1 MPa (dynamic) – 0.6 MPa (static)
Water Efficiency
National Grade-1 energy & water efficiency
Hardware
Dimensions (L×W×H)
693 × 415 × 491 mm
Rough-in
305 / 400 mm
Drainage
Floor drain (S-trap)
Seat Material
PP flame-retardant slow-close seat
Heating Mode
—
Comfort & Features
Feature 1
Foam shield: dense foam cushions and seals the bowl — anti-odor, anti-splash and anti-stick
Feature 2
Self-powered wireless small-flush button: short press for small flush, long press for large flush
Feature 3
Heated seat with multi-level adjustable temperature
Feature 4
Auto-flush when you stand up — hands-free and worry-free
Feature 5
Antibacterial glaze for a cleaner, more hygienic bowl
Feature 6
Silver-ion antibacterial seat: SIAA-certified, up to 99.9% antibacterial rate
Feature 7
Battery-backup flush works during power outages
Packaging
Item 1
Ceramic toilet bowl × 1 set
Item 2
Seat assembly × 1 set
Item 3
Self-powered wireless button × 1 set
Item 4
External battery box × 1
Item 5
Foaming agent × 1 bottle
Item 6
Waterway fittings (angle valve, filter screen, hoses) × 1 set
Item 7
Floor-drain installation
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
