HQ552Dual flush: 3.8 L ¡ 305 / 400 mm

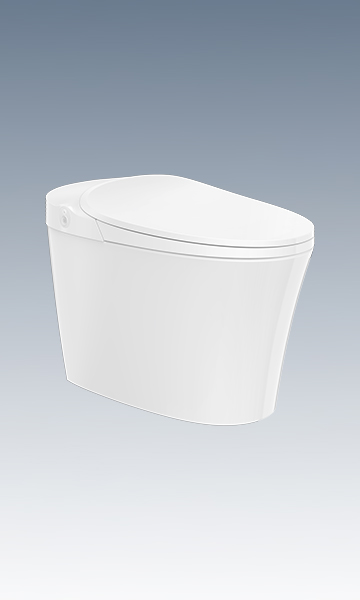

HQ552 Light Smart Integrated Toilet
An easy upgrade to smart comfort.
Type
Light smart integrated toilet
Dimensions
683 Ă 413 Ă 505 mm
Water Pressure
0.1 MPa (dynamic) â 0.6 MPa (static)
Flush Volume
Dual flush: 3.8 L
Rough-in
305 / 400 mm
Drainage
Floor drain (S-trap)
Seat
PP flame-retardant slow-close seat
Full Specifications
Overview
Model
HQ552
Type
Light smart integrated toilet
Intended Use
Hotels, resorts, homes, offices, hospitals and commercial restrooms
Key Performance
Flush System
Super-conductive flush system for a strong, clean siphon flush
Flush Volume
Dual flush: 3.8 L
Water Pressure
0.1 MPa (dynamic) â 0.6 MPa (static)
Water Efficiency
Dual-flush water saving design
Hardware
Dimensions (LĂWĂH)
683 Ă 413 Ă 505 mm
Rough-in
305 / 400 mm
Drainage
Floor drain (S-trap)
Seat Material
PP flame-retardant slow-close seat
Heating Mode
â
Comfort & Features
Feature 1
Auto-flush when you stand up â hands-free and worry-free
Feature 2
3-level heated seat temperature for year-round comfort
Feature 3
Pre-misting wets the ceramic wall before use to prevent sticking
Feature 4
SIAA-certified antibacterial seat, up to 99.99% antibacterial rate
Feature 5
Dual-flush (large/small) design saves water every day
Feature 6
Soft night light for late-night visits
Feature 7
Water-clean glaze: micro-crystal fired surface, stain-resistant and easy to rinse
Feature 8
Battery-backup flush works during power outages
Packaging
Item 1
Ceramic toilet bowl Ă 1 set
Item 2
Smart seat assembly Ă 1 set
Item 3
Balanced-pressure flange Ă 1
Item 4
Waterway fittings (pressure-relief valve, filter screen, hoses) Ă 1 set
Item 5
Floor-drain installation
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
