HCE316A013.8 L · 305 / 400 mm

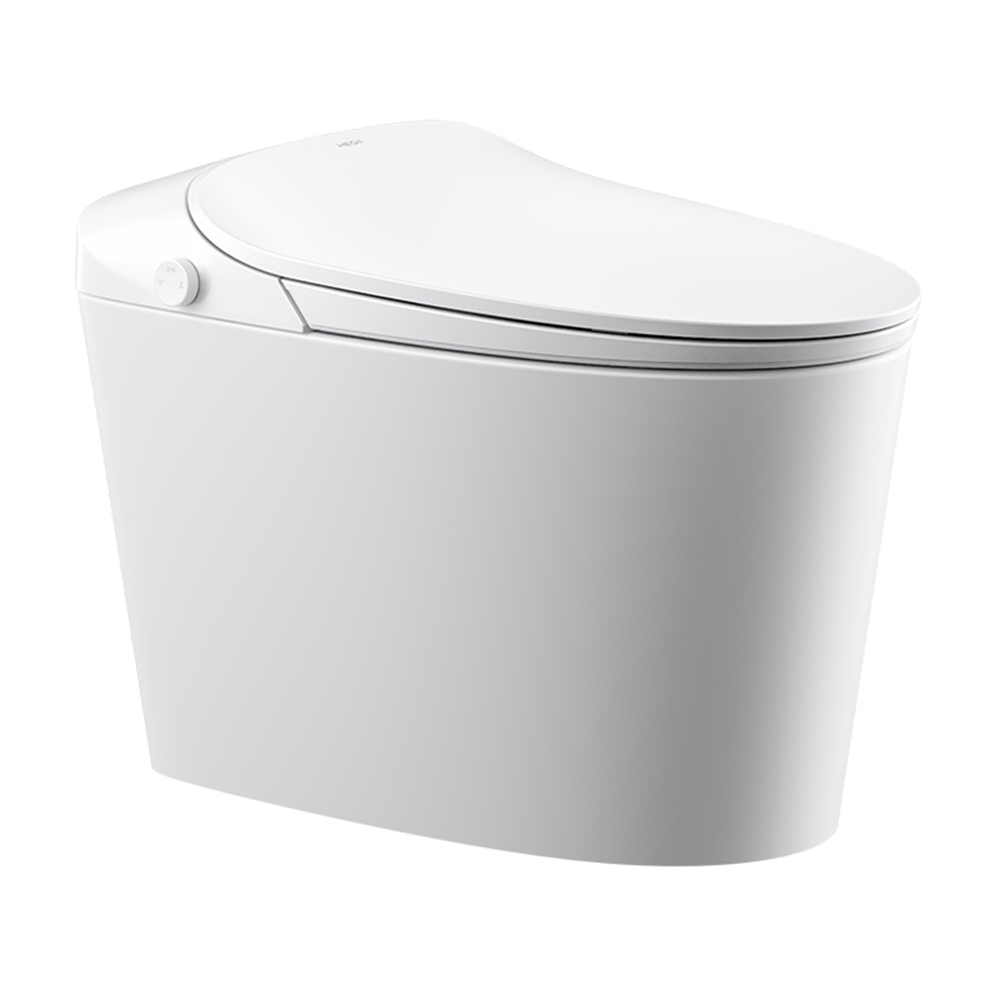

HCE316A01 Smart Integrated Toilet
Toe-touch flushing and alternating hot-cold massage wash — a brand-new experience.
Type
Smart integrated toilet (full wash funct
Dimensions
674 × 424 × 500 mm
Water Pressure
0.1 MPa (dynamic) – 0.6 MPa (static)
Flush Volume
3.8 L
Rough-in
305 / 400 mm
Drainage
Floor drain (S-trap)
Heating
Instant (tankless) water heating
Seat
PP flame-retardant slow-close seat
Full Specifications
Overview
Model
HCE316A01
Type
Smart integrated toilet (full wash functions)
Intended Use
Hotels, resorts, homes, offices, hospitals and commercial restrooms
Key Performance
Flush System
Super-conductive flush system: powerful cleaning with built-in pressure-reducing valve and anti-splash design
Flush Volume
3.8 L
Water Pressure
0.1 MPa (dynamic) – 0.6 MPa (static)
Water Efficiency
National Grade-1 energy & water efficiency
Hardware
Dimensions (L×W×H)
674 × 424 × 500 mm
Rough-in
305 / 400 mm
Drainage
Floor drain (S-trap)
Seat Material
PP flame-retardant slow-close seat
Heating Mode
Instant (tankless) water heating
Comfort & Features
Feature 1
Alternating hot-cold massage wash: circulating warm and cool water for a relaxing clean
Feature 2
Pulse massage: rhythmic warm-water pulses soothe and refresh
Feature 3
Toe-touch flush: hole-free waterproof ceramic — flush without bending down
Feature 4
One-key rotary knob: rear wash, feminine wash, flush and stop with a single twist or press
Feature 5
Self-cleaning waterway: auto-drains after each wash to prevent scale build-up
Feature 6
Heated seat, multi-level adjustable temperature
Feature 7
Silver-ion antibacterial seat: SIAA-certified, up to 99.9% antibacterial rate
Feature 8
Battery-backup flush works during power outages
Packaging
Item 1
Ceramic toilet bowl × 1 set
Item 2
Remote control kit (batteries included) × 1 set
Item 3
FP085 sealing ring × 1
Item 4
Smart seat assembly × 1 set
Item 5
Waterway fittings (angle valve, filter screen, hoses) × 1 set
Item 6
Floor-drain installation
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
