GCQ527B3.8 L ¡ 305 / 400 mm

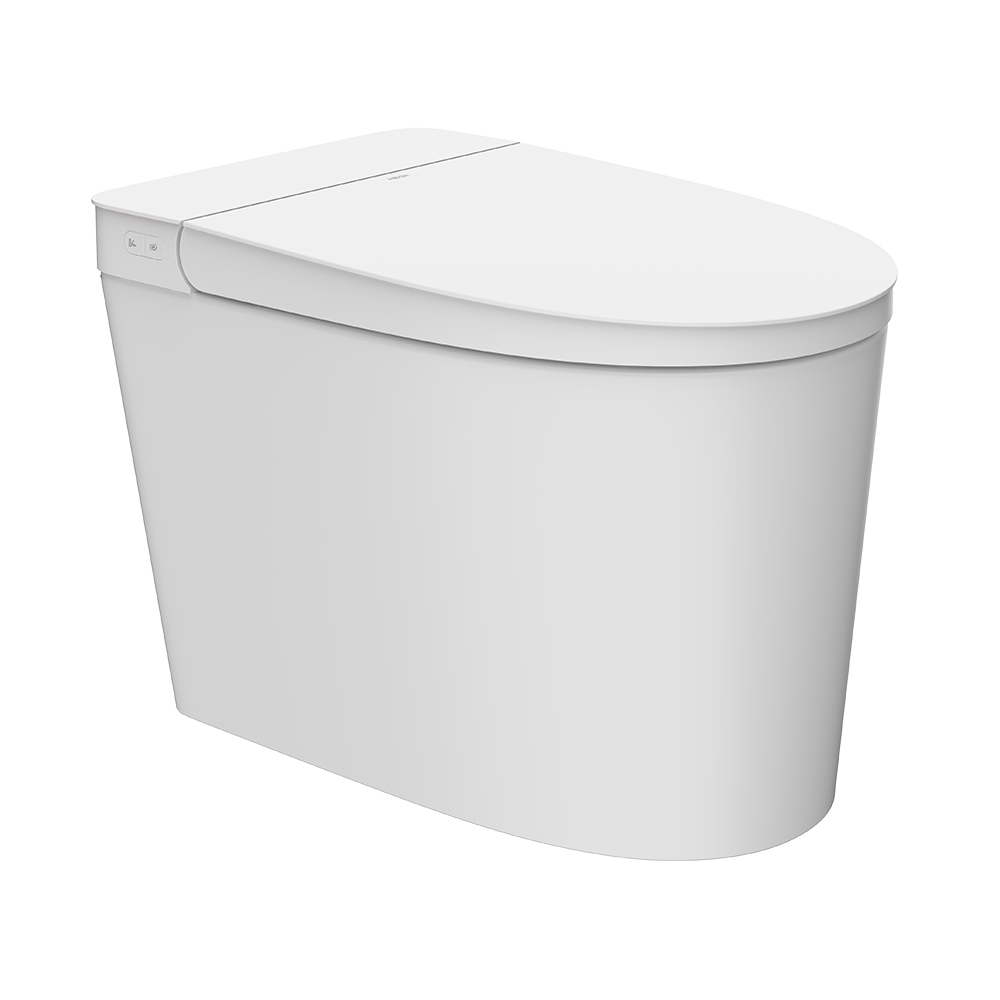

GCQ527B Light Smart Integrated Toilet
Super-conductive flush with toe-touch flushing â convenience at every step.
Type
Light smart integrated toilet
Dimensions
608 Ă 406 Ă 447 mm
Water Pressure
0.1 MPa (dynamic) â 0.6 MPa (static)
Flush Volume
3.8 L
Rough-in
305 / 400 mm
Drainage
Floor drain (S-trap)
Seat
PP flame-retardant slow-close seat
Full Specifications
Overview
Model
GCQ527B
Type
Light smart integrated toilet
Intended Use
Hotels, resorts, homes, offices, hospitals and commercial restrooms
Key Performance
Flush System
Super-conductive flush system: powerful siphon cleaning with a built-in pressure-reducing valve and anti-splash design
Flush Volume
3.8 L
Water Pressure
0.1 MPa (dynamic) â 0.6 MPa (static)
Water Efficiency
National Grade-1 water efficiency
Hardware
Dimensions (LĂWĂH)
608 Ă 406 Ă 447 mm
Rough-in
305 / 400 mm
Drainage
Floor drain (S-trap)
Seat Material
PP flame-retardant slow-close seat
Heating Mode
â
Comfort & Features
Feature 1
Toe-touch flush: waterproof hole-free ceramic body â flush without bending down
Feature 2
Silver-ion antibacterial seat: SIAA-certified, up to 99.9% antibacterial rate
Feature 3
Heated seat with even, constant warmth for every season
Feature 4
Pre-misting: seat sensor wets the ceramic wall before use so waste never sticks
Feature 5
Auto-flush when you stand up â hands-free, no more forgotten flushes
Feature 6
Battery-backup flush works even during a power outage
Feature 7
Low-temperature burn protection: seat cools to ~36 °C after 10 minutes of occupancy
Feature 8
National Grade-1 water efficiency
Packaging
Item 1
Ceramic toilet bowl Ă 1 set
Item 2
Smart seat assembly Ă 1 set
Item 3
FP085 sealing ring Ă 1
Item 4
Waterway fittings (angle valve, filter screen, hoses) Ă 1 set
Item 5
Floor-drain installation
Specifications are subject to change without notice due to continuous product improvement. Confirm final parameters with our sales team for your order.
